A conveyor belt system consists of six primary structural components that work together for smooth and efficient material handling. These belt conveyor system components include the conveyor belt carcass (carrying medium), drive pulley (power transmission), tail/idler pulleys (return and tracking guidance), support rollers/slider beds (load carrying), take-up unit (tension control), and electric drive motor with gearbox. Understanding how these mechanical parts interact is essential for maintaining optimal system alignment and preventing belt wear.
In industrial material handling, a belt conveyor is far more than just a moving strip of rubber or synthetic polymer. It is a precision-engineered mechanical assembly where multiple belt conveyor system components must operate in proper synchronization.
Failure in a single component—such as a seized idler roller or an improperly adjusted take-up unit—can throw off tracking, overload the drive motor, or cause premature edge fraying along the belt length.
Below is an engineering breakdown of the core belt conveyor system components that make up an industrial belt conveyor system.

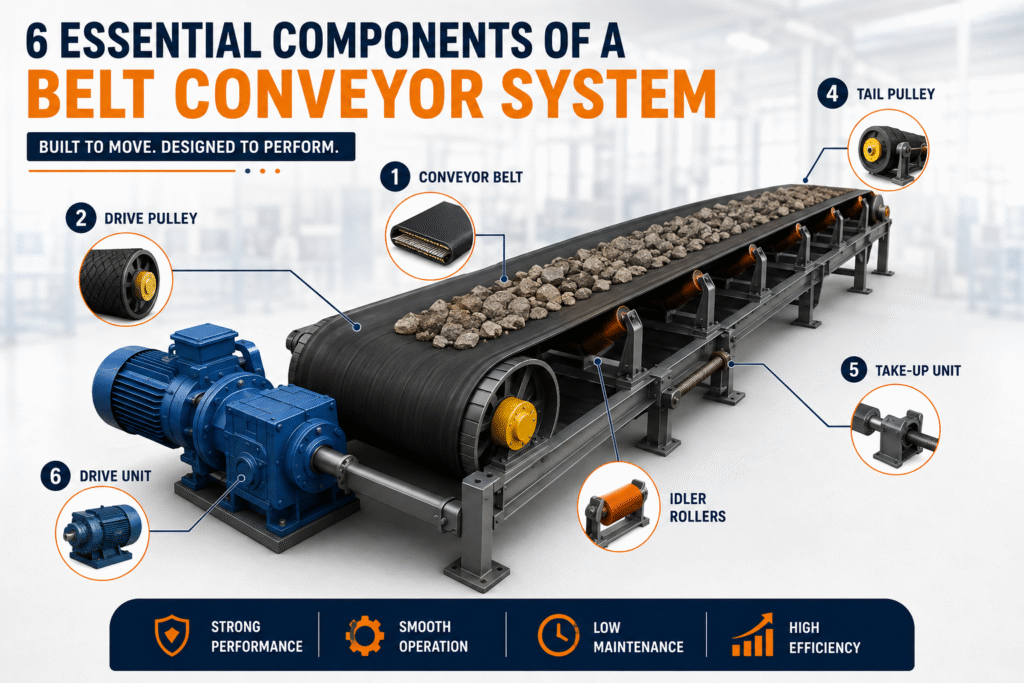

6 Essential Components of a Belt Conveyor System
1. The Conveyor Belt (Carrying Medium)
The belt supports and moves the material. It consists of two main parts:
- The Carcass: The inner structural layer made of woven fabric plies (polyester, nylon, or cotton) or steel cables that provides tensile strength to withstand pulling forces.
- Top & Bottom Covers: Protective layers made of PVC, PU, rubber, or Teflon that shield the carcass from abrasion, impact, heat, and chemical exposure.
2. The Drive Pulley (Head Pulley)
Located at the discharge end of the conveyor, the drive pulley is powered by an electric motor and gearbox. It uses surface friction against the inner belt cover to pull the loop forward.
- Rubber Lagging: Drive pulleys are frequently coated with diamond-patterned or grooved rubber lagging to increase grip and prevent belt slippage under heavy loads.
3. Idler Rollers & Slider Beds
Support components positioned beneath the belt along the conveyor frame:
- Carrying Idlers: Rollers mounted on the top strand that support the weight of the belt and carried load.
- Impact Idlers: Heavy-duty rubber-disc rollers installed at loading chutes to absorb shock from falling bulk material.
- Return Idlers: Rollers on the underside that guide the empty returning belt.
- Slider Beds: Smooth steel or ultra-high-molecular-weight (UHMW) polyethylene sheets used instead of rollers in lightweight packaging or food sorting lines.
4. Tail & Snub Pulleys
- Tail Pulley: Located at the loading end of the conveyor, guiding the belt back onto the carrying track.
- Snub Pulleys: Secondary rollers placed near the drive pulley to increase the belt’s angle of wrap around the drive drum, maximizing frictional torque.
5. The Take-Up Unit (Tensioning System)
Maintains constant longitudinal tension on the belt to prevent slippage on the drive pulley and compensate for natural belt elongation over time.
- Screw Take-Up: Manual adjustment screws commonly used on short to medium-length conveyors.
- Gravity Take-Up: Counterweight-driven systems used on long or heavy-duty conveyors to automatically adjust tension during load fluctuations.
6. Drive Unit & Control Systems
The power package consisting of an electric motor, gear reducer (gearbox), drive chain or coupling, and electrical controls (variable frequency drives for speed regulation).
Conveyor System Components Reference Table
| Component | Primary Function | Common Materials | Key Maintenance Focus |
| Conveyor Belt | Carries load from entry to exit | PVC, PU, Rubber, Steel Mesh | Check tracking, splices, & edge wear |
| Drive Pulley | Transmits motor torque to belt | Steel frame with Rubber Lagging | Inspect lagging wear & shaft alignment |
| Impact Idlers | Absorbs impact at drop zones | Steel with thick Rubber Rings | Check for seized bearings or ring cracks |
| Take-Up Unit | Maintains proper belt tension | Threaded Steel Rods or Counterweights | Adjust to prevent belt sag or over-stretching |
| Return Rollers | Supports empty belt on return | Steel or Polyurethane tubes | Clear material buildup (carryback) |
